MIXER

3U

IN


4x
4x
1x
1x
*

RCA

PHONO
LINE
RETURN
MST LOOP IN
MIC/EXT - XLR/TRS

OUT


1x
1x

XLR

HOUSE
BOOTH



1x
1x
1x
1x

RCA

TAPE (-6db)
CUE OUT
SEND
MST LOOP OUT

DETAILS
CH TRIM

+/- 15db

MIC/EXT

1 <-> 40db

BOOTH EQ L/H

~∞<->8db

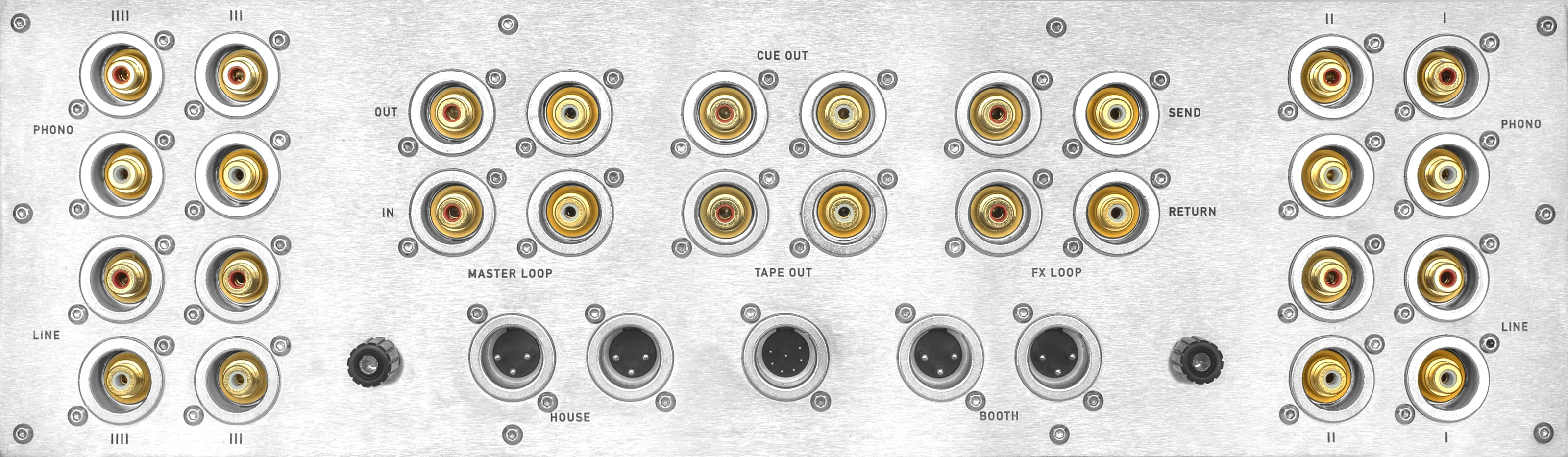

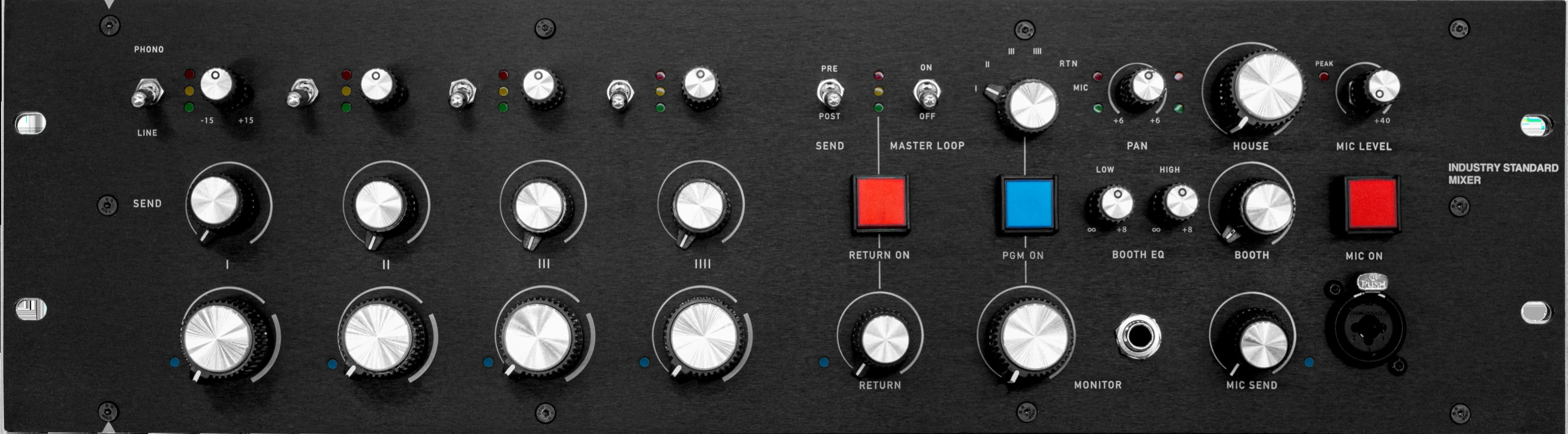

Mixer front panel Mixer back panel

ISOLATOR

2U

IN


4x
4x

RCA

PHONO
LINE

OUT


4x

RCA

LINE

DETAILS

LF-MF-HF
~∞<->18db

ENGAGE SWITCH(s)

INDIVIDUAL TOGGLE ON
press or release

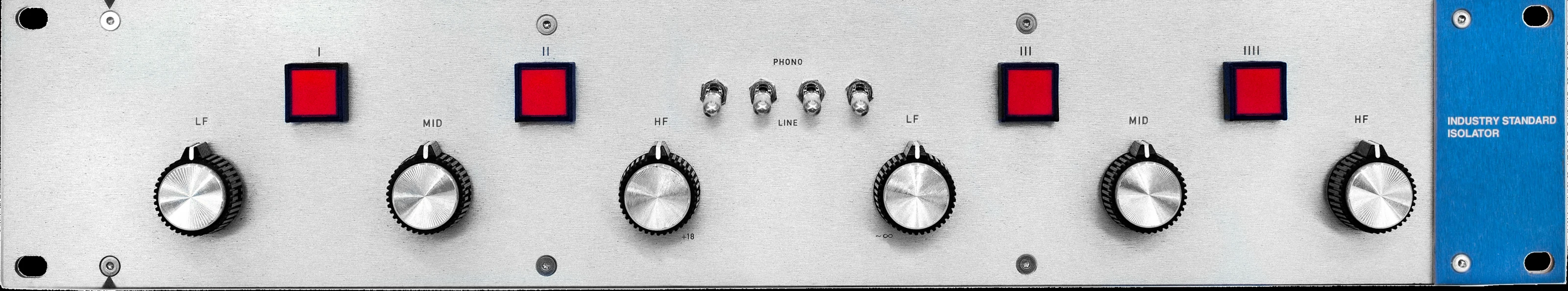

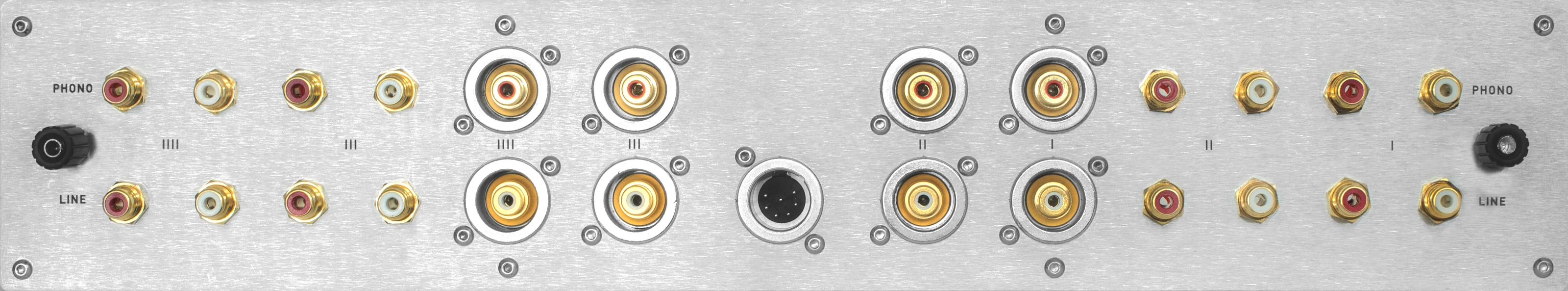

Isolator front panel Isolator back panel

POWER

1U

IN


1x

RCA

STEREO CUE IN

OUT
2xTRS
MONITOR EXPANSION
XLR7
2xDISCRETE LINEAR DC SUPPLY
NEMA 5-15
6xTYPE B
DETAILS

ACTIVE COOLING SYSTEM

REAR LAMP

PROTECTED MST ON/OFF

POWER RAIL STATUS INDICATORS

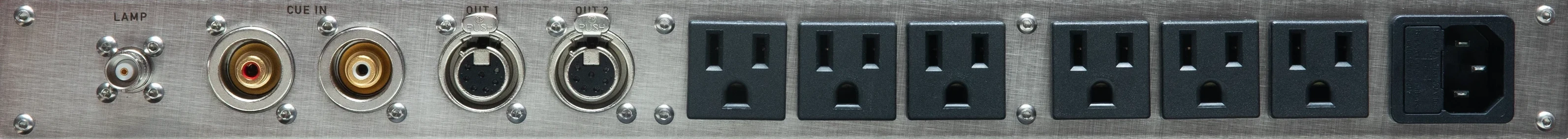

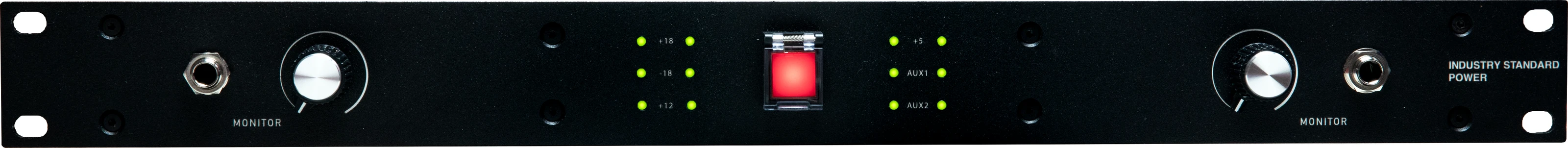

Power front panel Power back panel

CONTROL

1U

IN


2x



1x

RCA

LINE

XLR

SPL MIC

OUT


2x



1x

RCA

LINE

MIDI

CLOCK OUT

DETAILS

DELAY

INTERCHANGEABLE FX

ROUTE SELECT

BPM ENGINE

MIDI OUT

FX/WET FILTER(s)

SPL LIMIT ALERT

LIVES ON YOUR SYSTEM'S MASTER LOOP &/OR EFFECT SEND — TEMPO-AWARE THROUGHOUT, BUILT TO BE PLAYED LIVE — 100% ANALOG CHAIN

DELAY

TEMPO-SYNCED STEREO, UP TO 8s
6 SUBDIVISIONS — 4x <-> 1/4
INFINITE SUSTAIN AT MAX FEEDBACK
TAPE-STYLE DAMPING · PING-PONG
INSTANT TAIL-KILL AT ZERO

FX SLOT

SECOND EFFECT, SWITCHED ON THE FLY
ONE ADAPTIVE PARAMS KNOB PER FX
REVERB · ROLL · PITCH · SWEEP · FLANGER
HOLD + TURN TO SWITCH — NO MENUS

ALT

ONE FLIP — ALTERNATE BEHAVIOR
OF DELAY, FX SLOT, OR BOTH

FILTER & MIX

SWEEPABLE LP/HP ON FX PATH
DRY/WET TO TRUE 100% WET
MASTER OR SEND/RETURN ROUTING
TRUE STEREO THROUGHOUT

TEMPO ENGINE

AUTO BPM FROM INCOMING AUDIO
TAP TEMPO + FOLLOW MODE
MIDI CLOCK OUT FOR EXTERNAL GEAR
ACTIVE SOURCE ALWAYS SHOWN

VENUE / INSTALL

MIC IN + CALIBRATED SPL METER
ADJUSTABLE LOUDNESS LIMIT
FRONT-PANEL OVER-LEVEL ALERT LED
PIN LOCK — SET IT AND KEEP IT SET

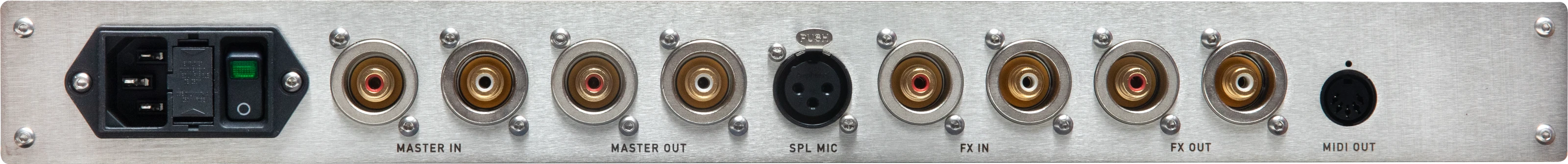

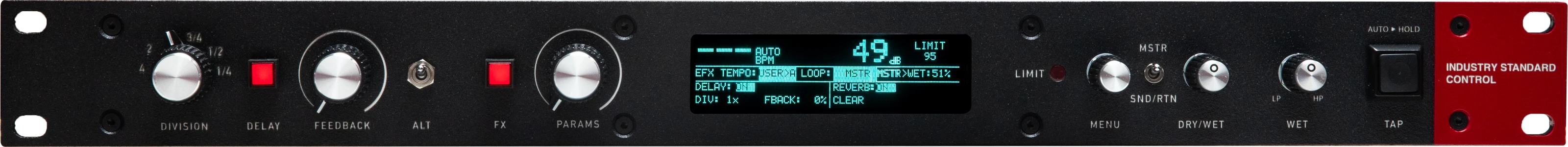

Control front panel Control back panel

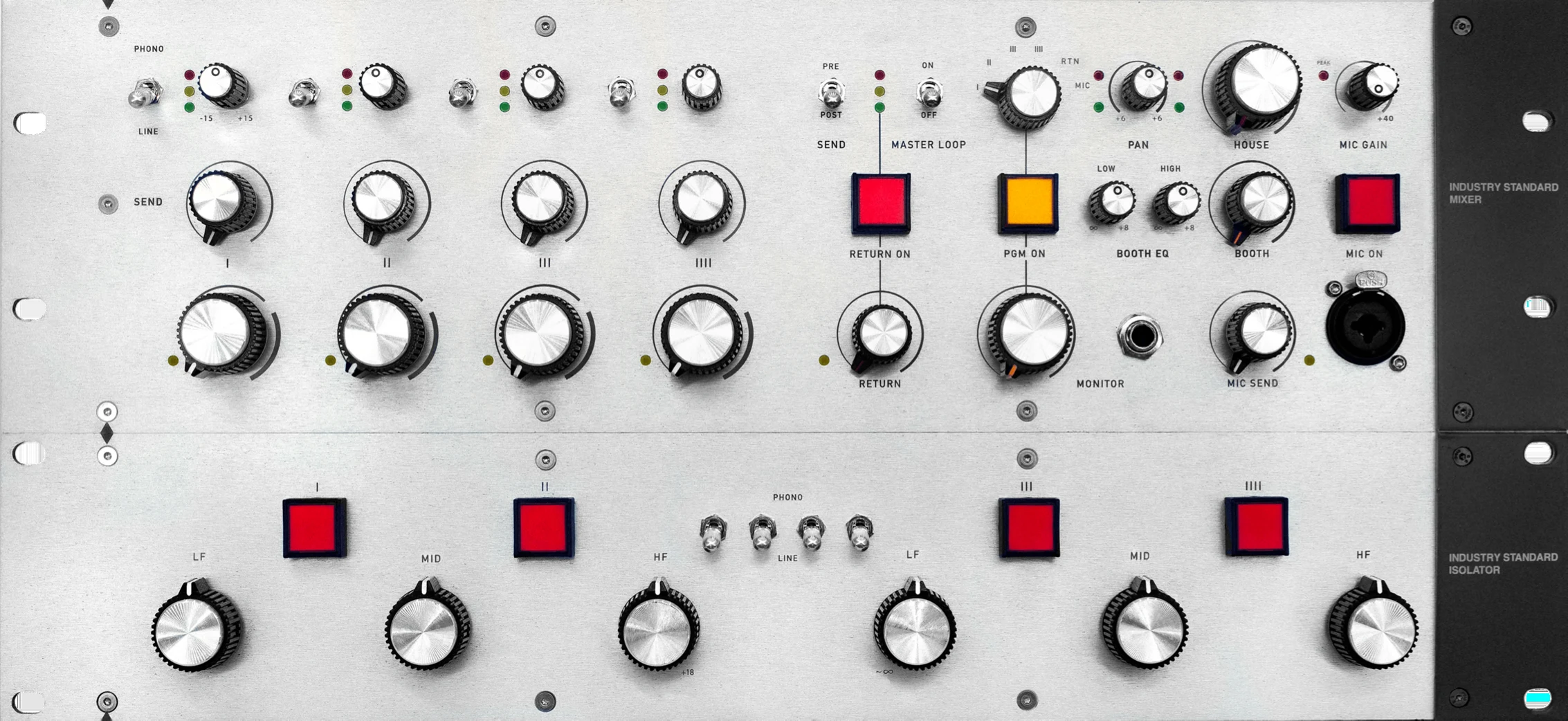

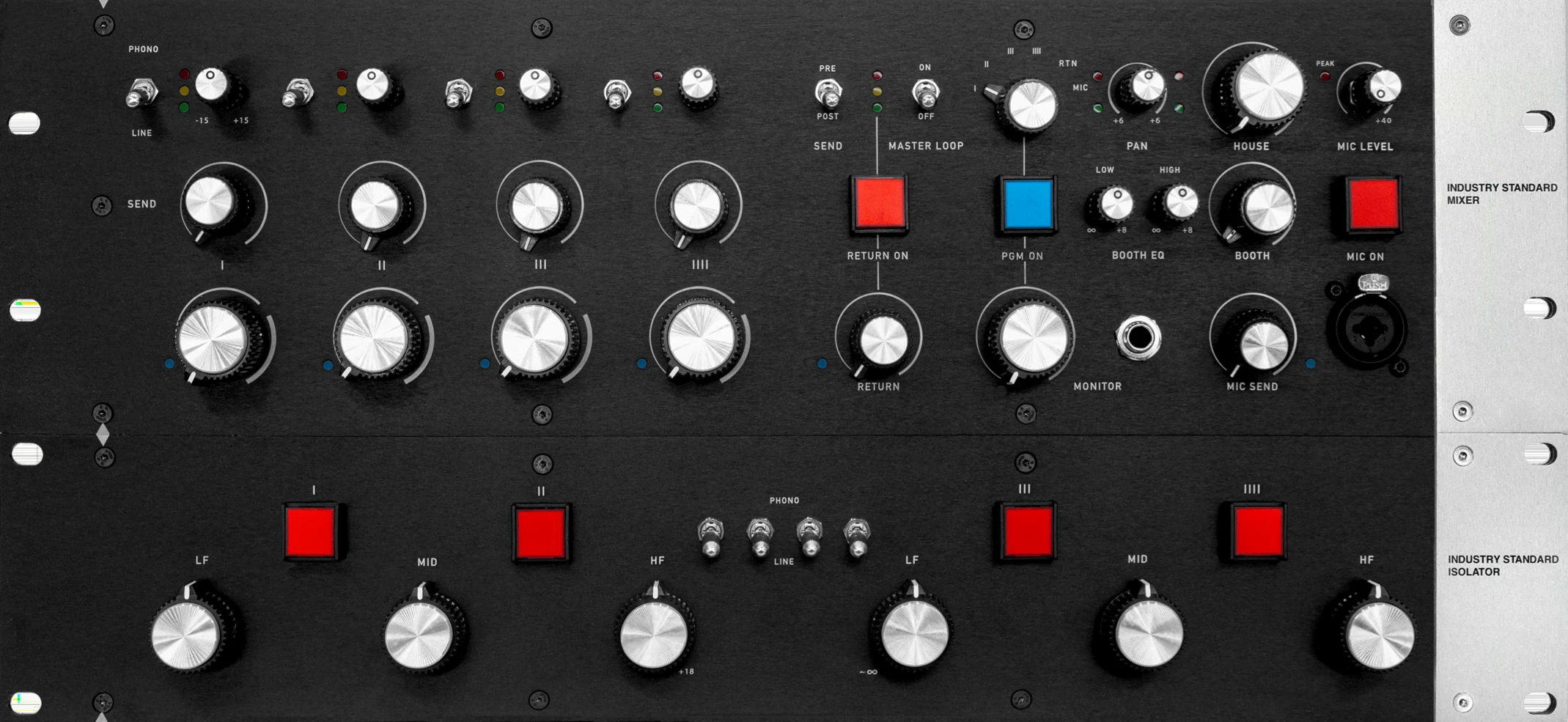

Power unit front panel left Power unit front panel right

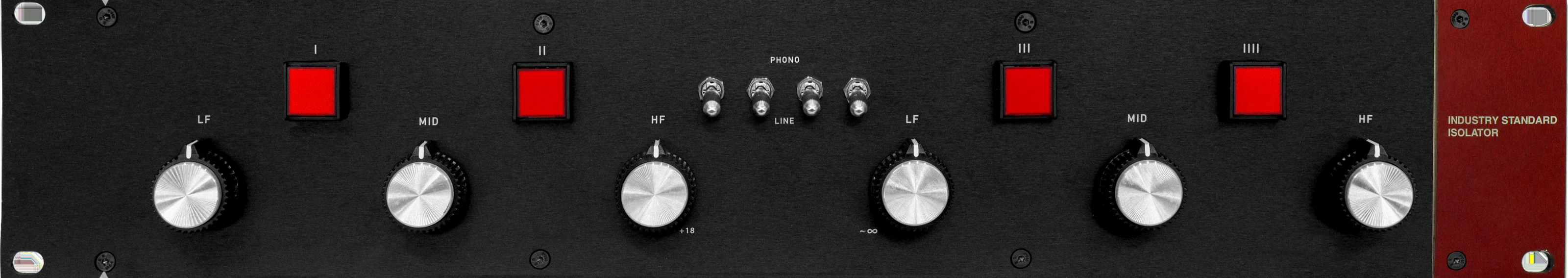

Power unit rear panel

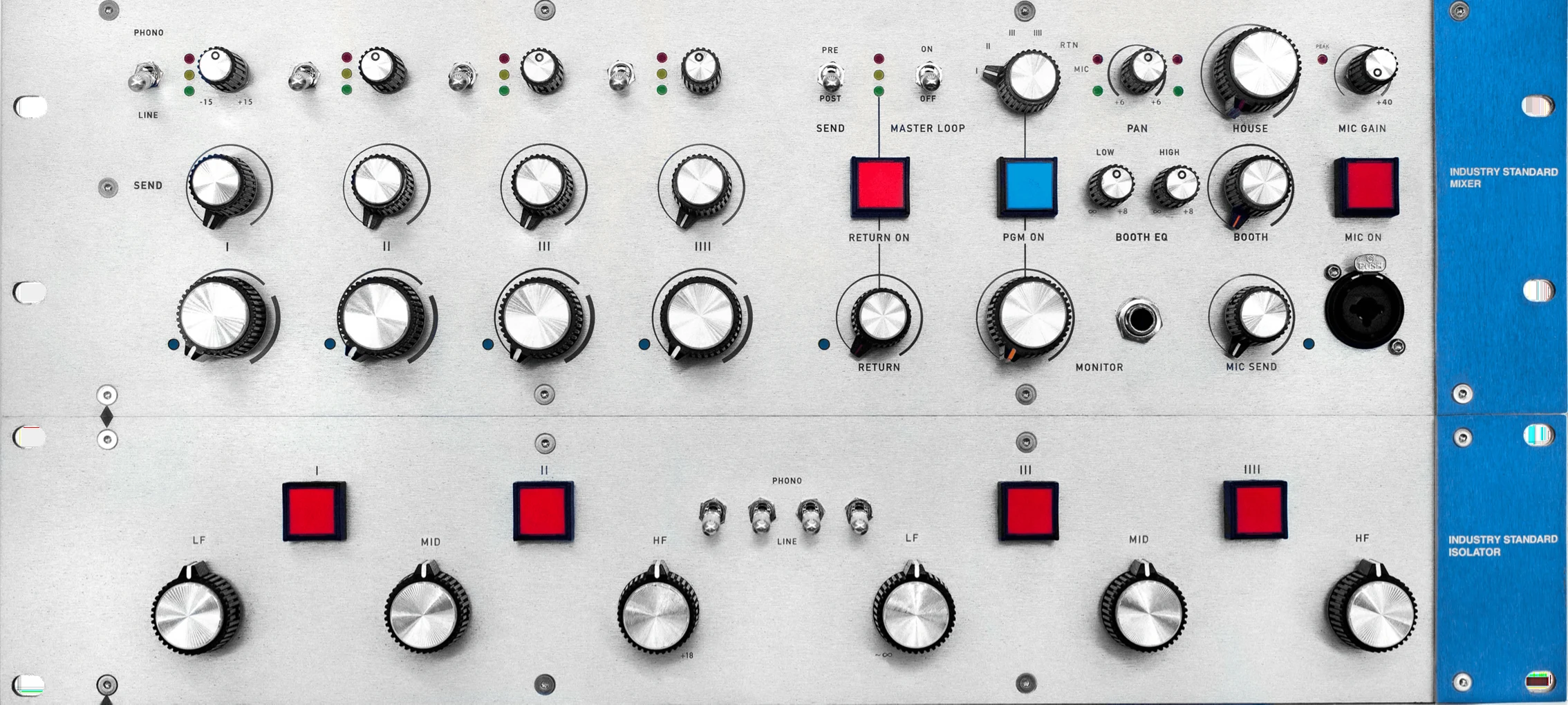

Monitor unit
